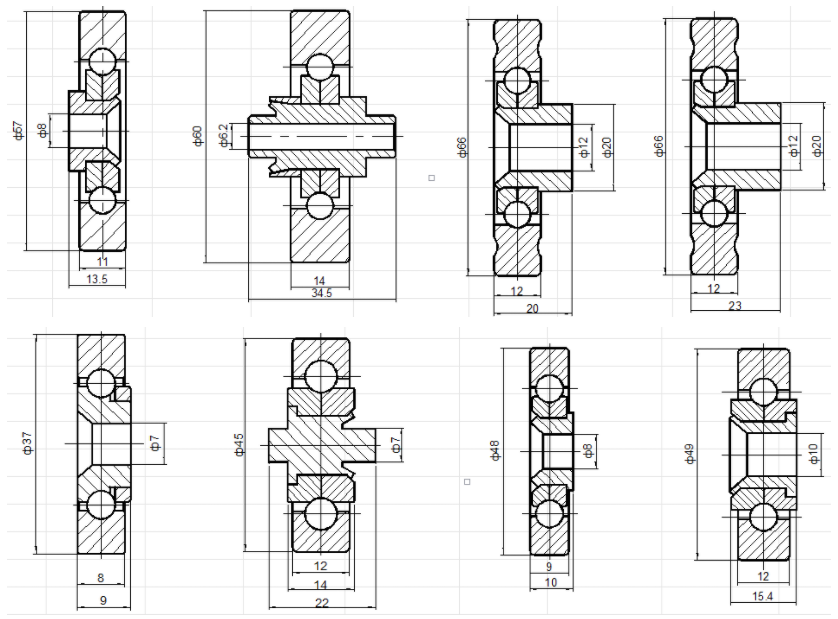

| Outer Diameter Size | Applicable chain | Maximum load weight |
| ф37 | FX150 | 8Kg |
| ф45 | FX150 | 8Kg |
| ф48 | FX200 | 20Kg |
| ф49 | FX200 | 20Kg |
| ф57 | WF4.11.206 | 30Kg |
| ф60 | WF4.11.206 | 30Kg |
| ф66 | FX204 | 50kg |
| ф66 | FX204 | 50Kg |
| Species | Out Dia | Out Width | Tolal Width | Type | Convyor | Chain | |
| ф60 | 60 | 19 | 21 | Retainer | 3 Inch | X348 | |
| ф60 | 60 | 19 | 21 | Full Ball | 3 Inch | X348 | |
| ф80 | 80 | 25 | 29 | Retainer | 4 Inch | X458 | |
| ф80 | 80 | 25 | 29 | Full Ball | 4 Inch | X458 | |
| ф82 | 82 | 25 | 29 | Retainer | 4 Inch | X458 | |
| ф82 | 82 | 25 | 29 | Full Ball | 4 Inch | X458 | |
| ф120 | 120 | 33 | 36 | Full Ball | 6 Inch | X678 | |
| ф125 | 125 | 33 | 35 | Retainer | 6 Inch | X678 | |
| ф125 | 125 | 33 | 35 | Full Ball | 6 Inch | X678 | |
| ф135 | 135 | 34 | 38 | Full Ball | 6 Inch | X678 |
