Project Introduction

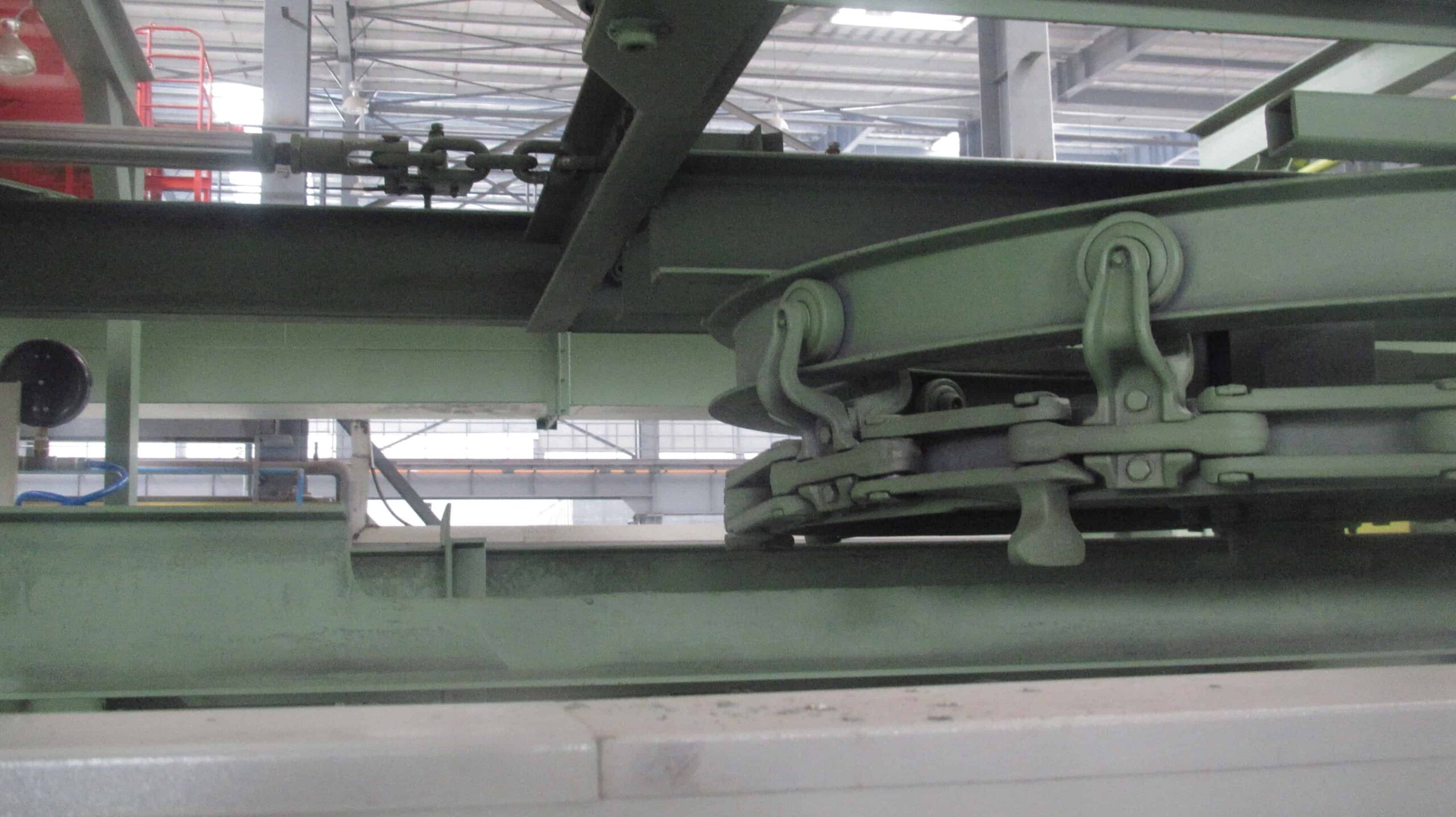

The Power and Free Conveyors were manufactured by CNR Group Mudanjiang Branch for the painting of high-speed rail parts. They use 6''Forged Rivetless Chain. The project was completed in 2013 and is still in good working condition.
Chain Pitch (mm)153.2mm
Maximum Thrust (kg)2700
Maximum Temperature Resistance250℃
Maximum loadSingle point 600 Kg (Dual point 1200 Kg)
Horizontal Track Bend Angle90º/ 15º/ 30º/ 15º
Vertical Track Bend Angle30º/15º
