Project Introduction

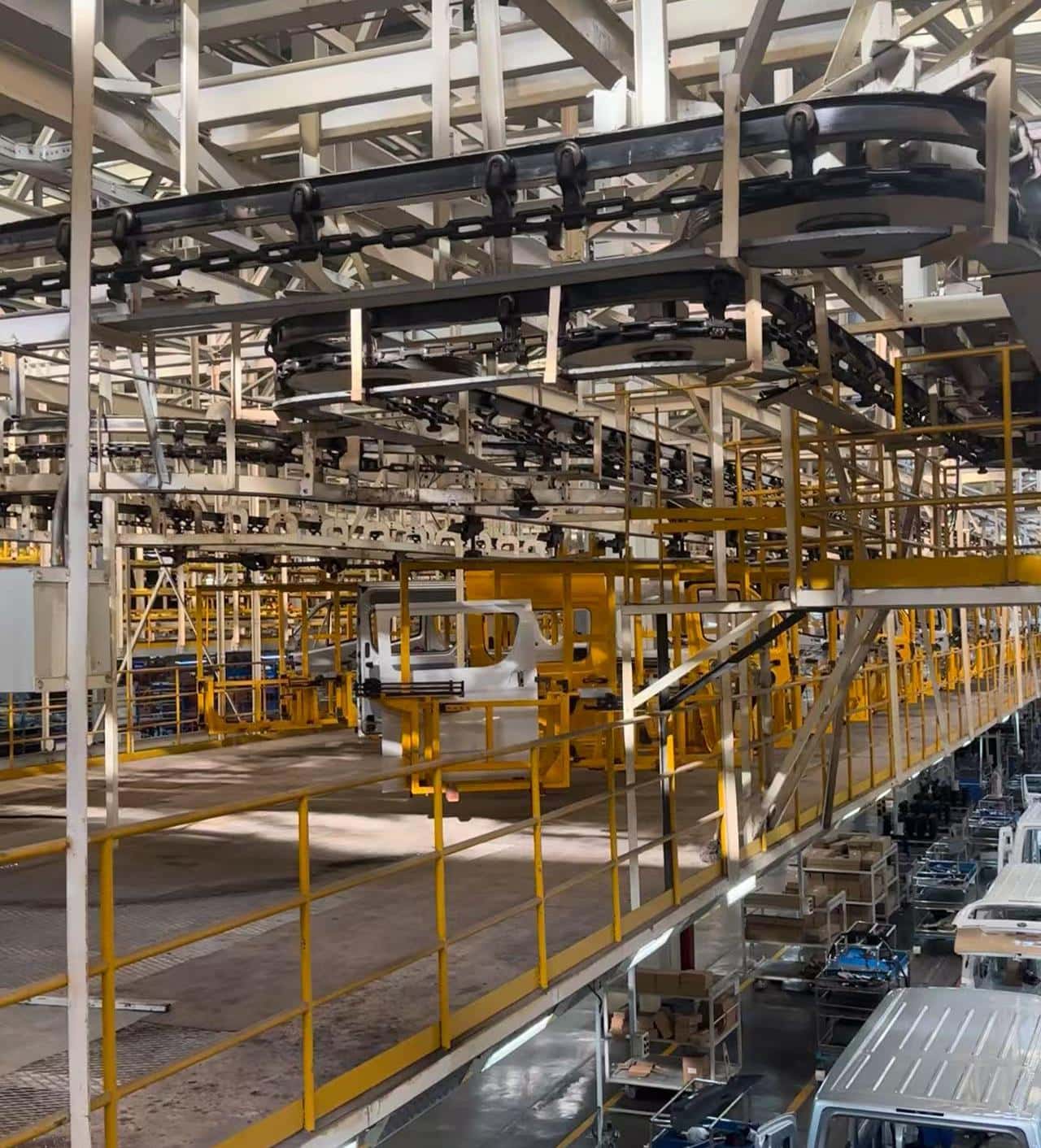

This production line adopts 6'' Power and Free Conveyors and is divided into two levels, the second level adopts horizontal accumulation ‘to store the trolleys containing the doors horizontally’, which greatly saves the space on the second level, and the doors are transported from the second level to the installation station on the first level through the lifts.
Chain Pitch (mm)153.2mm
Maximum Thrust (kg)2700
Maximum Temperature Resistance250℃
Maximum load6'':Single point 600 Kg
Horizontal Track Bend Angle90º/ 15º/ 30º/ 15º
Vertical Track Bend Angle30º/15º
