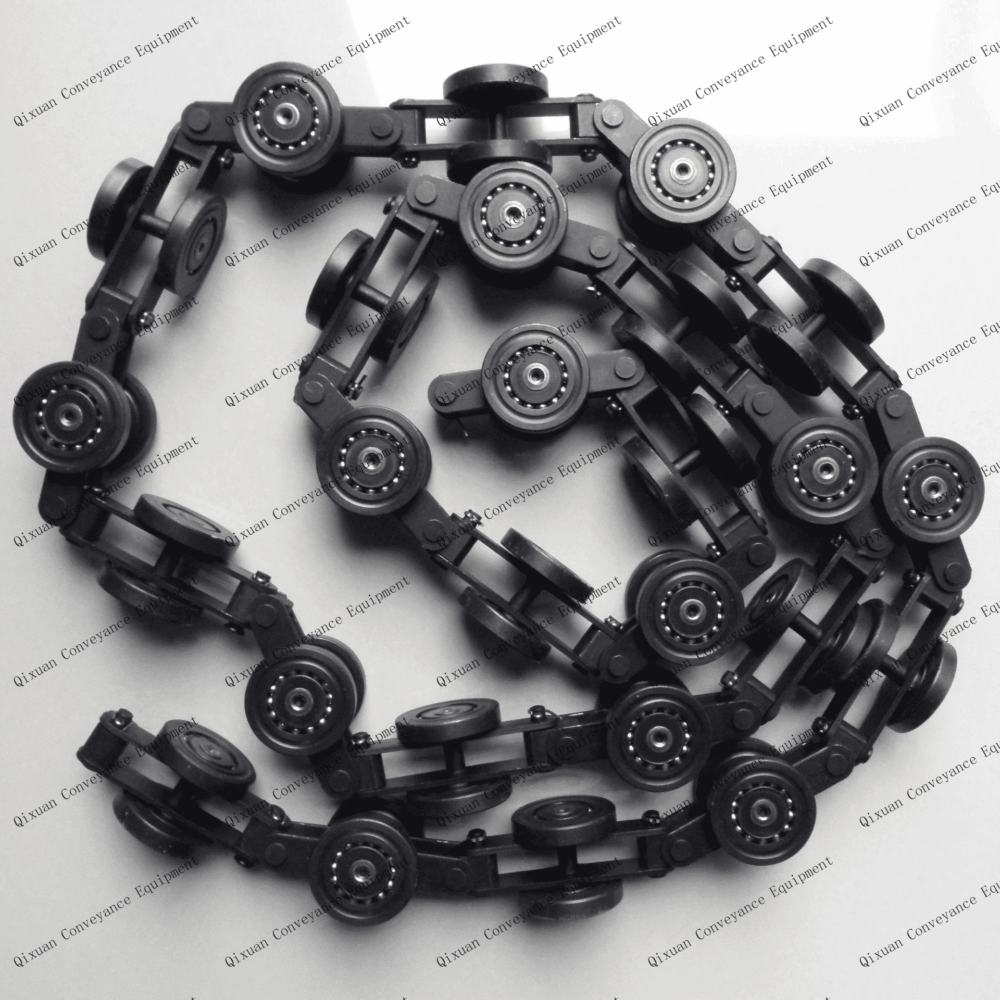

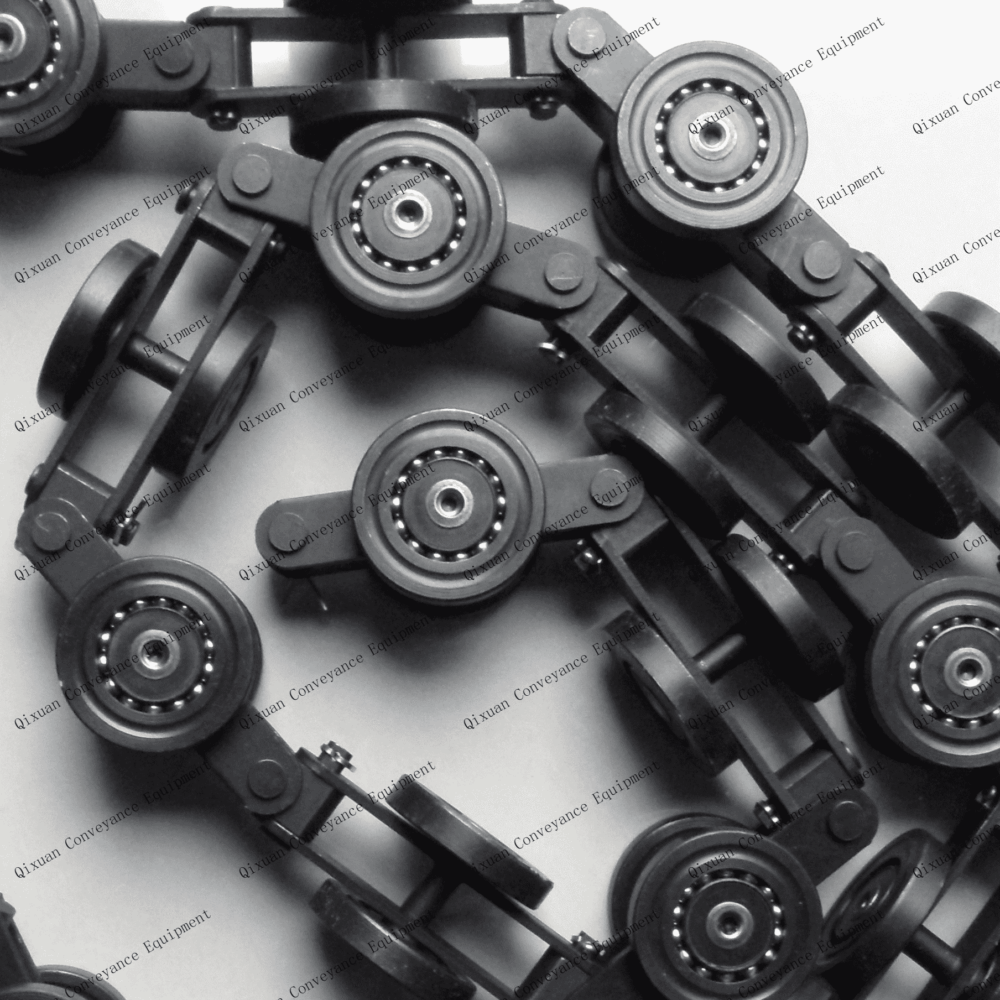

QXG250 double guide wheel chain is a more commonly used suspension chain besides 5-ton chain and QXG200 chain. It has double horizontal wheels, which can effectively reduce the load capacity of horizontal wheel bearings. Its chain plate is made of 40 manganese steel and is heat-treated, which effectively increases the tensile strength of the chain and extends the service life of the chain. This chain has a reasonable structure, the one-way steering shaft is forged and formed in one piece, and the chain plate and the cross shaft are connected with a cotter pin, without the problem of loosening or falling. At the same time, it has the characteristics of flexible steering, strong tensile resistance, and large load capacity. It is suitable for use in relatively high temperature environments.
Features of this 250 double guide wheel chain: The horizontal and vertical wheels of the chain adopt quenching heat treatment technology and bearing steel balls to improve their load-bearing capacity and wear resistance. Reduce chain stretching deformation and extend the service life of the chain. It is suitable for production lines with many turns, heavy hanging workpieces, and many lifting positions but small slopes.
Technical parameters:
Chain pitch 250mm
Single point lifting weight: 60kg
Matching track: 80*80
Minimum turning radius: 600mm
Working temperature: -20℃~280℃
